The A100 Plus Version comes with Qualcomm Bluetooth v5.0 chip and Monster Silver Plated 3.5mm to RCA Cable(High-purity silver-plated oxygen-free copper audiophile cable)
HI-RES AUDIO CERTIFIED WITH HIGH-END COMPONENTS FOR STUDIO QUALITY SOUND – High-resolution certified audio produced by loaded ribbon tweeters for crisp, natural-sounding highs.
DESIGNED BY PHIL JONES –Aesthetics and technical aspects were designed by famed audio engineer Phil Jones to create a truly professional-grade sound
BUILT-IN AMP WITH SUBWOOFER OUT & A WIDE ARRAY OF INPUTS – Connect an optional subwoofer quickly and easily. Optical, Coaxial, Bluetooth 5.0 aptX, RCA, AUX, and USB Inputs
TRULY POWERFUL DISTORTIONLESS BASS - Courtesy of a 5" cast frame, under-hung coil woofer with a hard anodized aluminum cone for incredibly powerful bass that doesn't distort at higher volumes
Elegant design, winner of the German iF Design Award
Flat horn aluminum ribbon tweeter for dynamic highs and an airy sound
5-inch aluminum-magnesium alloy mid-woofer for low distortion and steady bass
Equipped with two independent digital amplifier chips for high-quality lossless audio
Ultra-low distortion digital amplification system and XMOS processor for distortion-free music
TRANSPARENT audiophile cables paired with MONSTER gold-plated connectors
Airpulse speakers are affordable versions of the renowned $12,000 AAD 7001 reference monitors designed by legendary speaker designer Phil Jones. Much like his most famous work, the Acoustic Energy AE-1 speakers, which were chosen by Abbey Road studio in London in the 80s, the 7001 was the studio monitor choice of famed musicians such as Bob James, Victor Wooten, and Grammy Award producer Don Murray. The superb sound accuracy of 7001 is why many music artists adopt it.
The Airpulse series inherits 7001's mechanism that matches a horn-loaded ribbon tweeter with an aluminum woofer for a balanced, detailed, and accurate sound. All technical and design aspects of Airpulse products were crafted by Phil Jones to reflect its commitment to providing premium studio-quality sound at affordable prices.

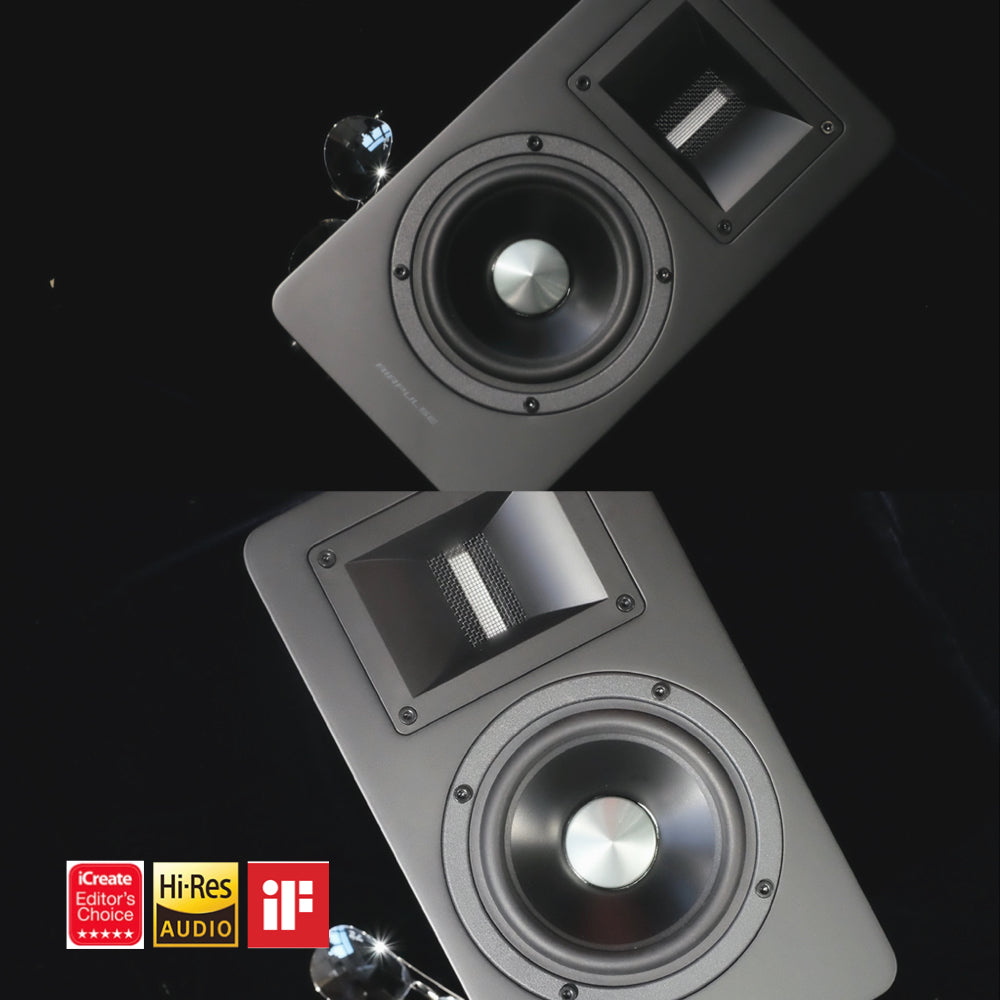

The horn-loaded ribbon tweeter on A100 has a thin aluminium ribbon diaphragm that is highly sensitive with a superb transient response. It can deliver an extended frequency range with well-defined resolution. The horn shape directs an optimized high-frequency to the listener and minimizes room reflection.
The woofer is a 5” unit with a hard-anodized aluminum alloy cone suspended in a heavy, ultra-rigid cast magnesium alloy frame. The proprietary aluminium alloy cone was designed through a meticulous analyzing process using a Klippel Laser Doppler Interferometer. A100 adopts an underhung coil design, which requires a much larger magnetic field and costs more, yet it has lower distortion and more linear electromotive force.
A100 produces 10w×2 RMS for tweeters and 40w×2 RMS for woofers using TI TAS5754 digital amplifiers. The amps operate at ultra-high 768khz PWM frequency for low distortions. Each speaker has a rear-facing bass reflex port for better bass extension. The port is rounded smoothly to achieve low turbulence and high velocity, thus provide better sound performance. The cabinets are made of 18mm MDF with piano glossy finishing, which can minimize unwanted resonances. The interior of A100 is lined with professional-grade sound absorption materials to reduce coloration. Internal wiring is produced by TRANSPARENT to lower signal loss in transmission. The result is full and three dimensional sound with each detail well defined.
A100 comes with an XMOS processor that supports Digital Signal Processing (DSP) for active crossover. Comparing to traditional passive crossover networks, active digital crossovers done in DSP can better distribute sound frequency to tweeters and woofers in a more effective manner but cost more. Benefited by the cooperation with Edifier, the largest Chinese loudspeaker manufacturer, Airpulse managed to offer DSP at an entry-level price range of traditional HiFi. It also comes with Dynamic Range Control that can minimize distortion when volume changes.
XMOS of A100 supports USB asynchronous mode up to 192kHz. Via the asynchronous USB input, the amount of digital data transferred in the frame can be controlled and avoid distortions caused by high levels of jitters.

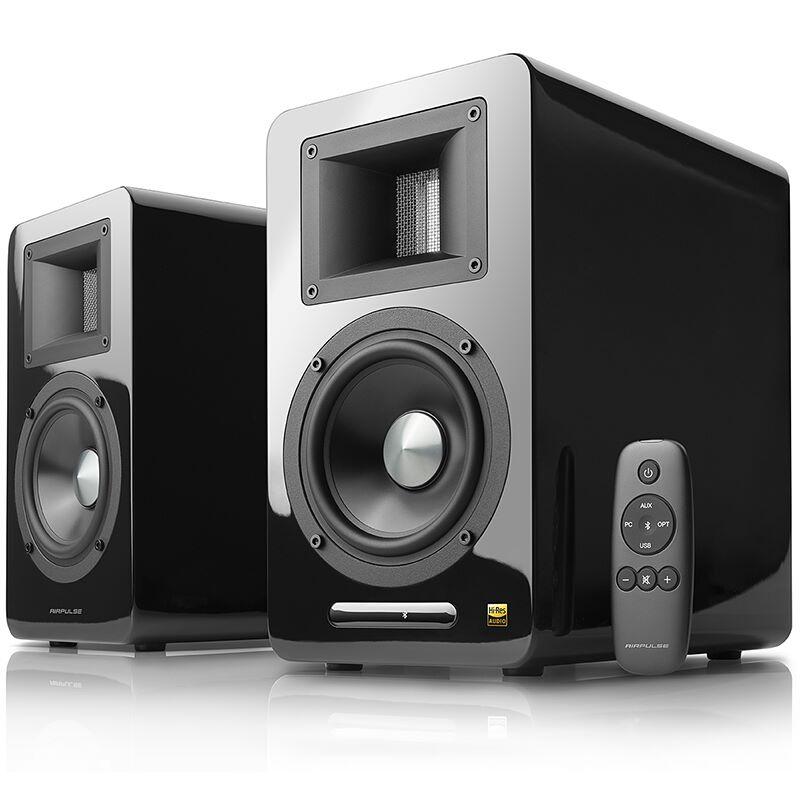

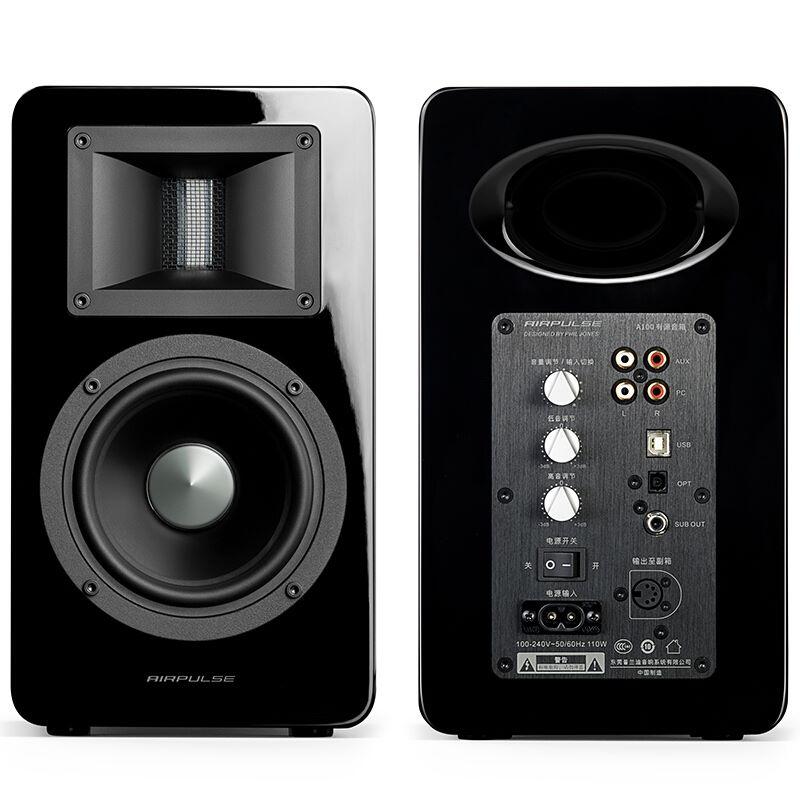

The A100 is equipped with both digital and analog inputs. TI BurrBrown PCM9211 and PCM1802 digital ADC chips together with the XMOS processor are used for AUX, RCA, USB, Optical inputs. Located on the rear panel of the A100 speakers are three knobs for treble, bass and volume adjustments. There is also a wireless remote for you to control the bookshelf speakers while sitting in chairs comfortably. The latest Bluetooth 5.0 provide premium sound quality. You can easily identify which input your speakers are set to via the LED status indicator on the front. Feel like needing more bass? A100 has the subwoofer out for you to add a subwoofer and assemble a 2.1 system!
TWEETER UNIT Horn Loaded Ribbon Tweeter
MID-WOOFER 5 inch Aluminum Cone Underhung Design Neo. Power Mid-Woofer AMPLIFIER SYSTEM Digtal Amplifer With Xmos Processor
TOTAL POWER OUTPUT L/R(Treble)10W+10W, L/R(Woofer): 40W+40W
FREQUENCY RANGE 52Hz-40KHz
SIGNAL-TO-NOISE RATIO L/R:≥90dB(A)
INPUT TYPE AUX, PC, USB, Optical, Bluetooth.
INPUT SENSITIVITY AUX:450±50mV PC:550±50mV, USB:400±50mFFs, Optical:400±50mFFs, Bluetooth:500±50mFFs,
Sub Out: 800mV(max)
MAINS VOLTAGE 100-240 V AC/50-60 Hz

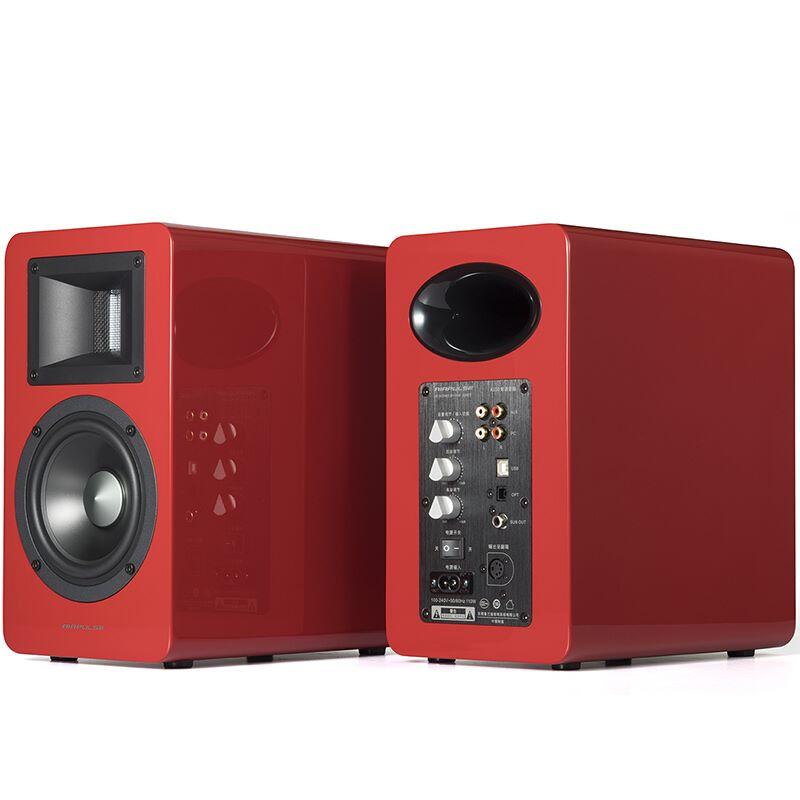

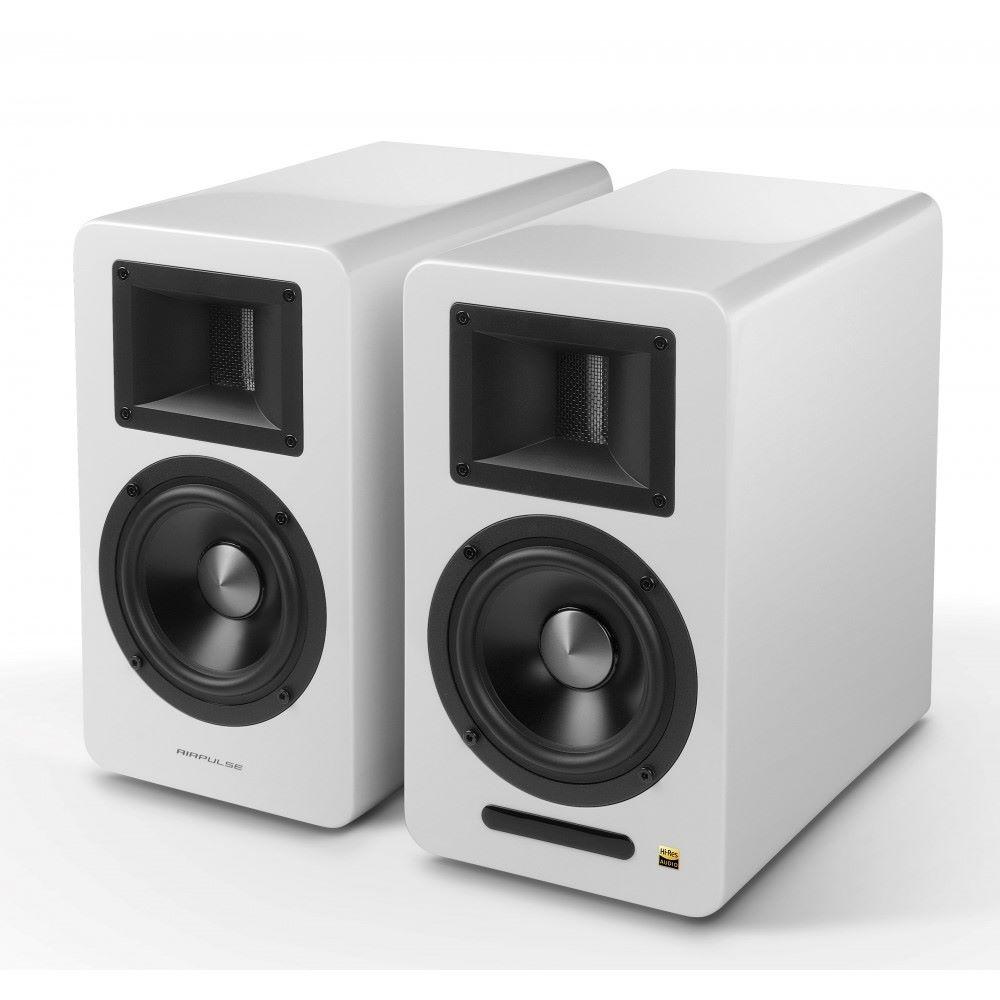

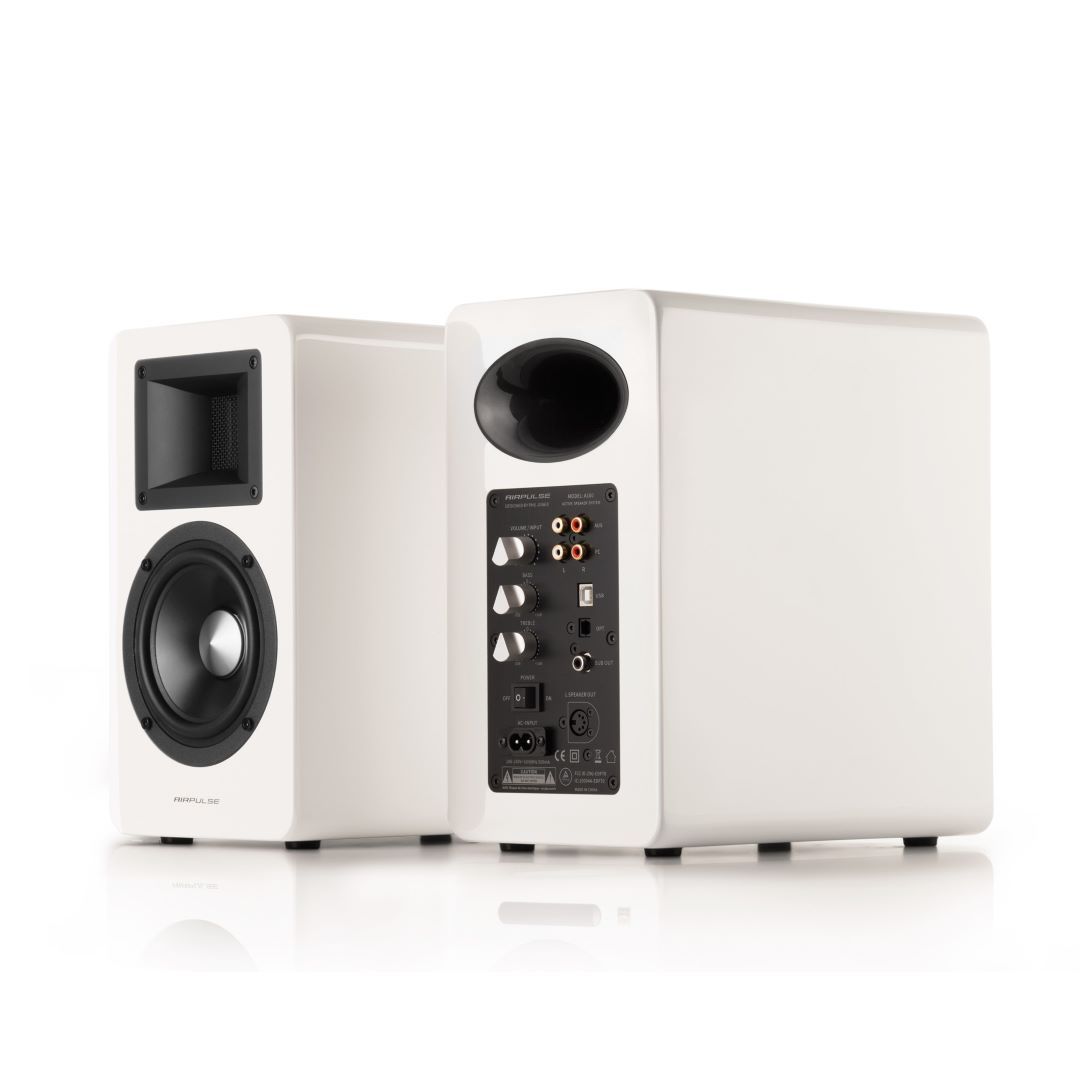

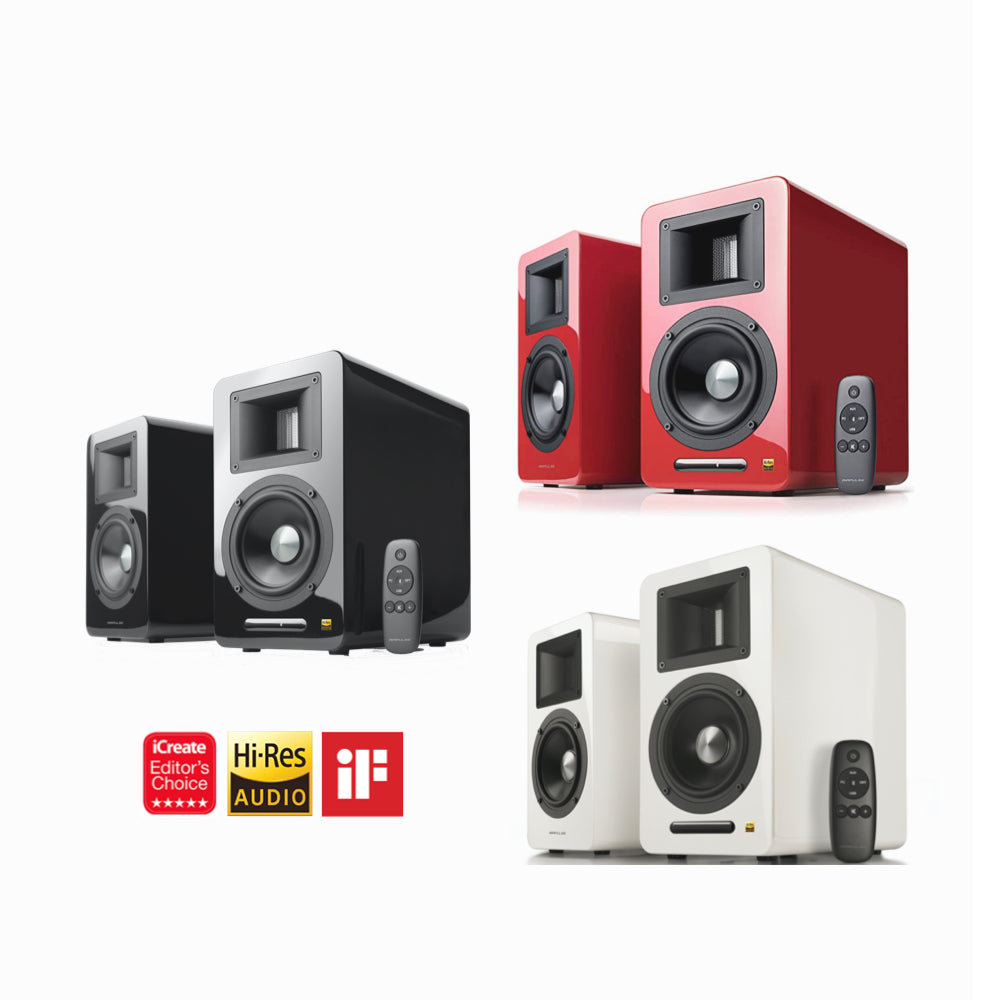

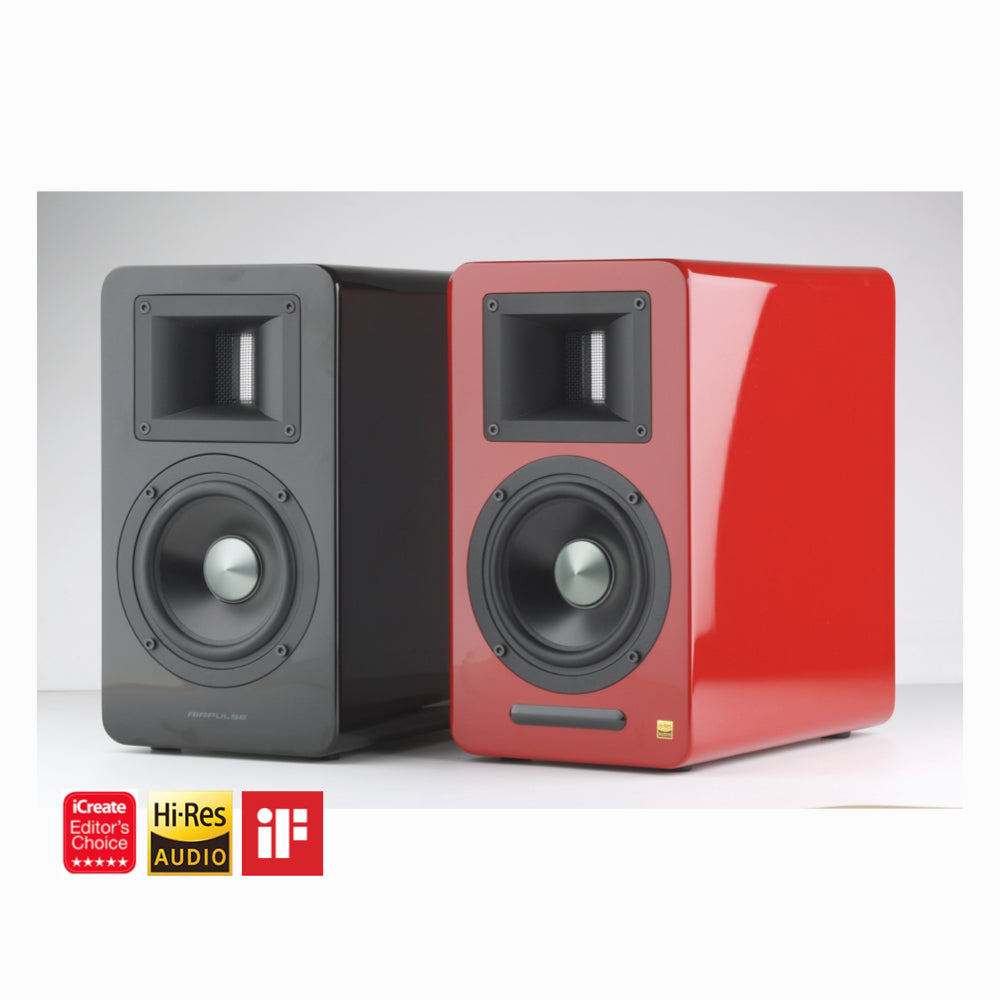

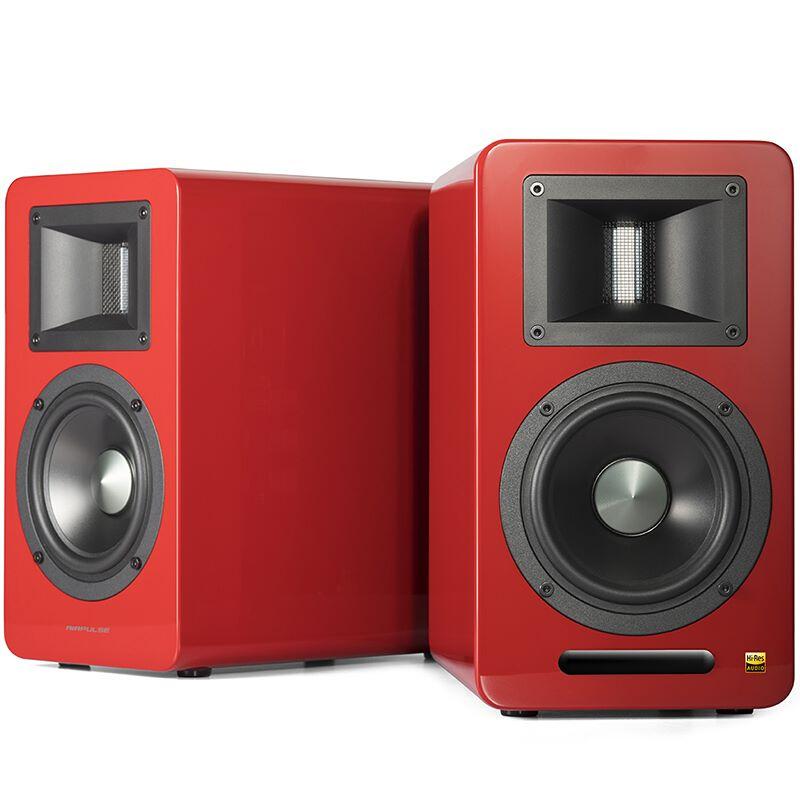

Color Black/ White/ Red
DIMENSION 160x283x255mm
NET WEIGHT 11 Kg(24.2lbs)
WEIGHT 13.4 Kg(29.5lbs)
PACKING DIMENSION 387x489x353mm
